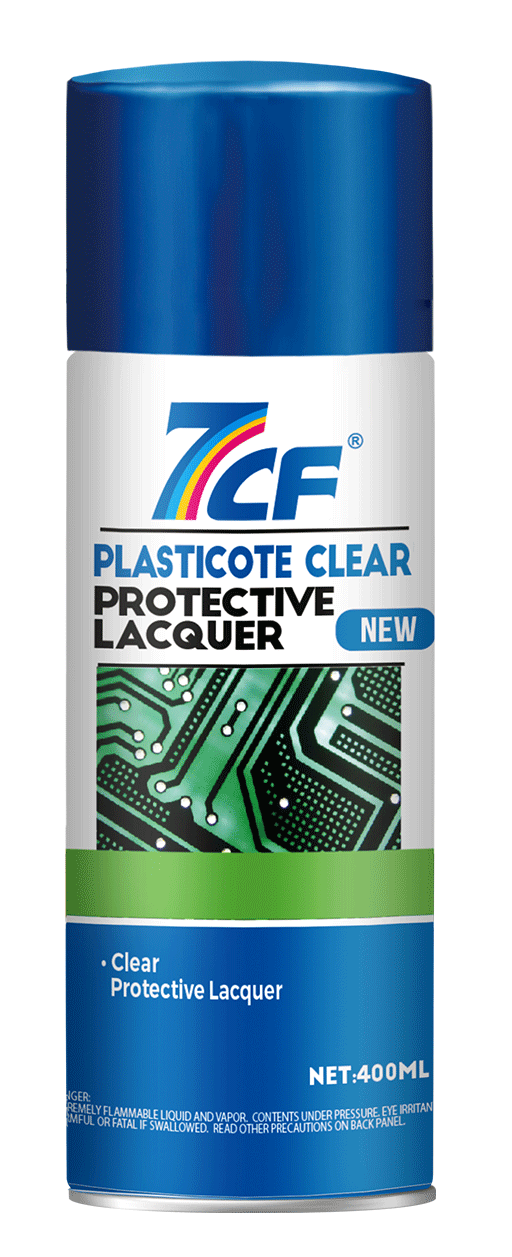

Plasticote

Plasticote

Plasticote is a clear protective lacquer, that is the Universal Protective Film for printed circuit boards. Plasticote is formulated to protect printed circuit boards against creepage and short circuits. The transparent acrylic insulating film is resistant to diluted acids, alkalies, alcohol and humidity. Plasticote resists high temperatures, is drip-proof and can be soldered through.

WHERE TO BUY

PLASTICOTE FEATURES & BENEFITS

  • Protects current against creepage and short circuits.

  • Resistant to diluted acids, alkaline, alcohol, and humidity.

  • Ideal for touch-ups for electronic printed circuits after repair.

  • Dries to a hard flexible film.

  • Can be soldered through for repair.

PLASTICOTE FEATURES & BENEFITS

PLASTICOTE APPLICATIONS

PLASTICOTE APPLICATIONS


  • Protecting components from condensation and moisture.

  • Printed circuit board, to protect against creepage.

  • Insulates cables and wires.

  • Coating terminal strips, screw connections, and switch boxes that are exposed to atmospheric effects.

  • In televisions to eliminate corona discharge phenomena from high voltage transformers and to prevent tracking at line transformers, etc.

  • Protects maps, charts, legal documents, technical drawings, architectural plans, scripts, and other flexible items.

  • Aerial protection against atmospheric corrosion for VHF, TV, and Radio Aerials.

  • Marine radio and other components - protects against salt water corrosion.



PHYSICAL & CHEMICAL PROPERTIES


Item

Standard

Appearance

CLEAR LIQUID (AEROSOL DISPENSED)

Odour

SOLVENT ODOUR

Flammability

HIGHLY FLAMMABLE

Flash point

10°C (cc)

Evaporation rate

3.0 (n-Butyl Acetate = 1)

Vapour density

> 1 (Air = 1)

Specific gravity

0.90

Upper explosion limit

12 %

Lower explosion limit

1.4 %

Solubility (water)

SLIGHTLY SOLUBLE

Boiling point

80°C


PACKAGING SPECIFICATIONS


ITEM NO.

Container size

A-H-005

10oz(283g)
